Máy tính công nghiệp NISE 3800E-H110

Support 6th & 7th generation Intel® Core™ i7/i5/i3 LGA socket type embedded processors
- Intel® Core™ i7-7700T, Quad-Core, 2.9GHz, 8M Cache
- Intel® Core™ i5-7500T, Quad-Core, 2.7GHz, 6M Cache
- Intel® Core™ i3-7101TE, Dual-Core, 3.9GHz, 3M Cache
- Intel® Celeron® G3930TE 2.7GHz, 2M Cache
- Intel® Core™ i7-6700TE, Quad-Core, 2.4GHz, 8M Cache
- Intel® Core™ i5-6500TE, Quad-Core, 2.3GHz, 6M Cache
- Intel® Core™ i3-6100TE, Dual-Core, 2.7GHz, 4M Cache
- Intel® Pentium® Processor G4400TE 2.4GHz, 3M Cache
- Intel® Celeron® Processor G3900TE 2.3GHz, 2M Cache

Turbo-boost disabled by default

2 x DDR4 SO-DIMM socket, support up to 32GB with un-buffered and non-ECC

Two independent display
- HDMI+ DVI-D

Front I/O Interface Status LEDs

2 x LAN active LEDs

2 x GPO status/COM1/2 TX/RX LEDs

1 x HDD access LEDs

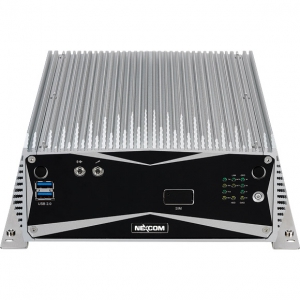

Front I/O Interface

1 x ATX power on/off switch

2 x USB 2.0 ports (500mA per each)

1 x Line-out and 1 x Mic-in

2 x Antenna holes

1 x SIM card holder

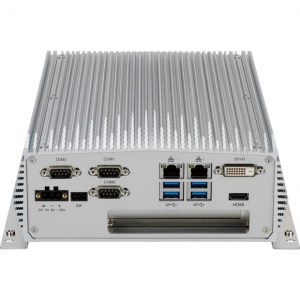

Rear I/O Interface

3 x DB9
- COM1: RS232/422/485 auto flow control
- COM2: RS232/422/485 auto flow control
- COM3: RS232

4 x USB 3.0 ports (900mA per each)

1 x DVI-D port

1 x HDMI port

2 x Intel® I210IT GbE LAN ports; support WoL, teaming and PXE

1 x 2-pin remote power on/off switch+9V to 30V DC input

Storage Device

1 x 2.5" HDD (SATA 3.0)

1 x mSATA (internal mini-PCIe socket)

Expansion Slot

One PCIe x4 expansion slot
- Add-on card length: 169mm max.
- Power consumption: 10W/slot max.

2 x Internal mini-PCIe socket support optional Wi-Fi/3.5G/mSATA/Fieldbus

Power Requirements

AT/ATX power mode (default: ATX power mode)

Power input: +9 to +30V DC

Power adapter: optional AC to DC power adapter (24V DC, 120W)

Dimensions

215 mm(W) x 272mm (D) x 93mm (H) without wall mount bracket (8.5" x 10.7" x 3.7")

Aluminum and metal chassis with fanless design

Operating temperature:
Ambient with airflow: -5°C to 60°C (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)

Storage temperature: -20°C to 85°C

Relative humidity: 10% to 93% (non-condensing)

Shock protection:
- HDD: 20G, half sine, 11ms, IEC60068-2-27

Vibration protection with HDD condition:
- Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64
- Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6

Certifications

CE approval- EN61000-6-2- EN61000-6-4

FCC Class A

UL

OS Support Lists

Windows 7 32-bit and 64-bit

Windows 8.1 32-bit and 64-bit

Windows 10 64 bits

Gross weight: 5.9kg

Net weight: 4.5kg
