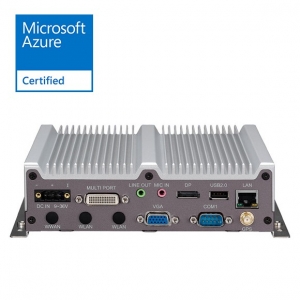

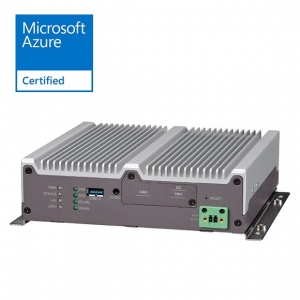

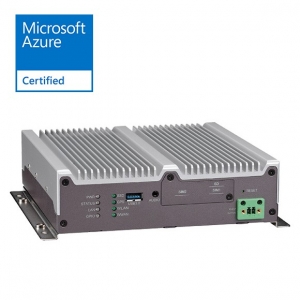

VTC 1010

1 x 2.5" SATA 2.0

1 x External accessible SD card socket

1 x Full size mini-PCIe socket (USB 2.0)

1 x Full size mini-PCIe socket (USB 2.0+ PCIe)

1 x Full size mini-PCIe socket (mSATA or PCIe)

1 x Half size mini-PCIe socket (USB 2.0 + PCIe)

1 x u-blox NEO-M8N module (support GPS/Gloness/QZSS/Galileo/Beidou) or optional module with Dead Reckoning

Built-in G-sensor

8 x LED for power, system status, storage, WWAN, WLAN, GPS, LAN, GPIO

2 x External accessible SIM card socket (selectable) with cover

1 x Audio jack 3.5mm for WWAN voice communication, including 1 x Mic-in and 1 x Line-out

1 x External accessible SD card socket with cover

1 x Event button (trigger type)

1 x Reset button

1 x Type A USB 3.0 compliant host, supporting system boot up

1 x 9 ~ 36VDC input with ignition and 11W typical power consumption

1 x Type A USB 2.0 compliant host, supporting system boot up

1 x RJ45 10/100/1000 Fast Ethernet with LED

1 x Phone jack 3.5mm for 1 x Mic-in (for WWAN voice communication)

1 x Phone jack 3.5mm for 1 x Line-out (for PC audio)

1 x DB-15 VGA. Resolution up to 2560 x 1600 @60Hz

1 x DP port. Resolution up to 2560 x 1600 @60Hz

1 x DB-9 for RS-232

4 x Antenna hole for GPS/WWAN/WLAN/BT

1 x LHF 60-pin connector
1 x 6-pin power connector, 12VDC output (max: 1A)
1 x Type A female USB 2.0 compliant host, supporting system boot up
1 x DB-9 RS-232
1 x DB-9 RS-422/485
1 x DB-9 female 3 x DI and 3 x DO. On board CAN 2.0B signals
(Programmable Digital Input)
Input voltage (Internal Type): 5VDC TTL (default)
Input voltage (Source Type): 3 ~ 12VDC
(Programmable Digital Output)
Digital output (Sink Type): 5VDC TTL (default), max current: 20mA
Digital output (Source Type): 3 ~ 24VDC, max current: 250mA
1 x optional CAN/OBDII module (CAN Bus 2.0B or OBDII SAE J1939)
1 x DB-9 for optional GPS Dead Reckening module
4 x BNC connector Video-In for optional 4-channel video capture card
4 x Audio connector for 7.1 channel audio output (front, center/woofer, rear surround, side surround)

Selectable boot-up & shut-down voltage for low power protection by software

Setting 8-level power on/off delay time by software

Status of ignition and low voltage can be detected by software

Support S3/S4 suspend mode

Operating temperatures:
-30°C to 70°C (w/ industrial SSD) with air flow
-20°C to 50°C (w/ commercial HDD) with air flow

Storage temperatures: -35°C to 85°C

Relative humidity: 10% to 90% (non-condensing)

Vibration (random): 1g@5 ~ 500 Hz (in operation, SSD)

Vibration (SSD):
Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier
US highway truck vibration exposure
Storage: MIL-STD-810G, Method 514.6, Category 24, minimum
integrity testShock (SSD):
Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=20g
Non-Operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g

CE approval

FCC Class B

E13 Mark
