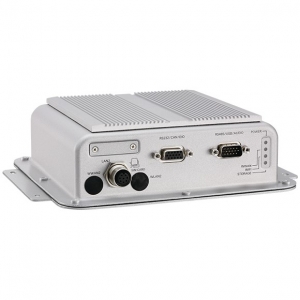

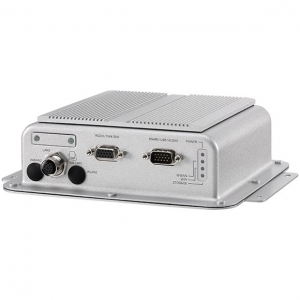

VTC 1911-IPK

Intel Atom® E3815 Telematics IoT Gateway IP67 Water and Dust Resistant

Giá: Liên hệ

Tính năng chính:

IP67 precision design to resist water and dust
Built-in CAN 2.0B. Optional OBDII function (SAE J1939/J1708)
U-blox NEO-M8N on board
Dual SIM cards for WWAN modules
Additional waterproof HDMI connector (by request)
Smart power management with ignition on/off delay via software control and low voltage protection
Wide range DC input 9V~36V
Wide operating temperature -40°C~70°C
Certified by CE/FCC/E13 mark/EN50155

Báo giá sản phẩm

PDF

VTC 1911-IPK, a waterproof entry-level vehicle computer with Intel Atom® processor E3815 (1.46GHz), is designed for the wet, dirty and harsh environment. The precision design to resist water and dust to IP67. It allows to comply with stringent MIL-STD-810G military standard in rugged, fanless and compact mechanism. Because of the lightweight design, it is especially for the vehicles with limited space to locate the computer system, but without compromising with its space to scarify its features.

VTC 1911-IPK has on board CAN 2.0B and optional OBD interface (SAE J1939/J1708) for vehicle diagnostics and driver behavior management. An advanced GPS receiver supports GPS/Glonass/QZSS/Galileo/Beidou. VTC 1911-IPK features WLAN and WWAN wireless data and voice connectivity. With external 2 x SIM socket which can support a better connectivity quality by software. VTC 1911-IPK keeps the flexibility to meet different demands for telematics applications, such as IoT gateway infotainment, fleet management and dispatching system.

CPU	Intel Atom® processor Bay Trail E3815, 1.46GHz
Memory	1 x 204-Pin DDR3L SO-DIMM socket support 1066MHz/1333MHz up to 8GB. Default 2GB
Storage	1 x mSATA 1 x SATA DOM or 1 x 2.5” SSD
Expansion	1 x Full size mini-PCIe socket (USB 2.0) 1 x Full size mini-PCIe socket (mSATA + USB 2.0 + PCIe)
Function	1 x U-blox NEO-M8N on board (support GPS/Glonass/QZSS/Galileo/ BeiDou) Built-in G-sensor TPM 2.0

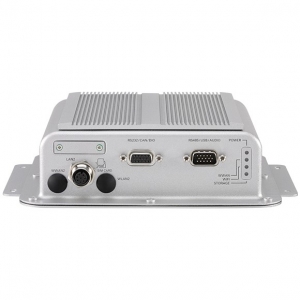

I/O Interface-Front	4 x LED for power, WWAN, Wi-Fi, storage 2 x SIM socket (micro type) with cover 1 x M12 (A-code) connector for 10/100/1000Mbps Ethernet 1 x (Male) 15-pin waterproof D-SUB connector - 1 x RS485 (TX+/TX-) - 1 x USB 2.0 - 1 x Mic-in (L/R) - 1 x Line-out (L/R) - 1 x Optional VIOB-CAN-05/06 or 2 x video input 1 x (Female) 15-pin waterproof D-SUB connector - 2 x RS-232 (TX/RX) - 1 x CAN 2.0B (w/ isolation) - 3 x DI, 3 x DO 2 x Antenna hole for WWAN/WLAN

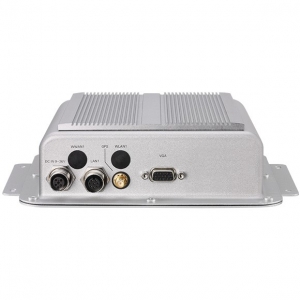

I/O Interface-Rear	1 x M12 5-pin circular power connector (ignition, power, GND) 1 x M12 (A-code) connector for 10/100/1000Mbps Ethernet 1 x 15-Pin waterproof D-SUB connector for VGA output 1 x Waterproof HDMI connector (by request) 3 x Antenna hole for WWAN/WLAN/GPS
Operating System	Windows 7, WES7 Windows 8, WES8 Windows 10 Linux (by request)
Dimensions	185 x 167 x 56.5 (W x D x H) (mm) (7.28” x 6.57” x 2.22”) Weight: 1.1kg (2.42bs)
Environment	Temperature - Operating temperatures: -40°C~70°C - Storage temperatures: -45°C~85°C - Damp heat test per EN60068-2-30 Humidity - IEC60068-2-3, damp heat steady state test, 40°C, 95%, 48Hrs Vibration - IEC 60068-2-64, 2G - Operating: MIL-STD-810G, 514.6C Procedure 1, Category 4 - Storage: MIL-STD-810G, 514.6E Procedure 1, Category 24 Shock - MIL-STD-810G, 516.6 Procedure I, trucks and semi-trailers=40g - Crash hazard: Procedure V, ground equipment=75g
Certifications	CE FCC Class A E13 EN50155

VTC 1911-IPK (P/N: 10V00191100X0)
Intel Atom® processor Bay Trail E3815, 1.46GHz with 2GB DDR3L SO-DIMM, U-blox M8N GPS on board, VGA output, 2 x LAN, 2 x RS-232 (Tx/Rx), 1 x RS-485 (Tx/Rx), 1 x CAN 2.0B, 3 x DI, 3 x DO, 1 x USB 2.0, 1 x Line-out/Mic-in

Certification
Date	Description	Version	OS	Download
2019-05-16	CE		Windows
2019-07-17	Emark		Windows
2020-03-23	EN50155		Windows
2019-05-16	FCC		Windows

Driver
Date	Description	Version	OS	Download
2019-02-23	Audio		Windows
2019-02-23	Chipset		Windows
2019-02-23	Graphics		Windows
2019-02-23	LAN		Windows
2019-02-23	MBI		Windows
2019-02-23	TXE		Windows

Manual (Please Contact Sales)
Date	Description	Version	OS	Download
2019-05-23	User Manual (Datasheet Only)		Windows
2019-05-23	User Manual (Datasheet Only)		Windows

SDK and Utility
Date	Description	Version	OS	Download
2019-05-16	CAN SDK		Windows
2019-05-16	Gsensor SDK		Windows
2019-05-16	MCU Update SDK		Windows
2019-10-16	SDK		Linux
2019-05-16	SDK		Windows
2019-05-16	WDT SDK		Windows
