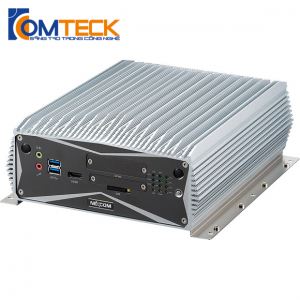

Máy tính công nghiệp NISE 3700E

Support 4th generation Intel® Core™ i7/i5/i3 LGA socket type embedded processor
- Core™ i7-4770TE, Quad-Core, 2.3GHz, 8M Cache, Max Turbo Frequency 3.3 GHz
- Core™ i5-4590T, Quad-Core, 2.0GHz, 6M Cache, Max Turbo Frequency 3.0 GHz
- Core™ i3-4350T, Dual-Core, 3.1GHz, 4M Cache
- Pentium® G3320TE, Dual-Core, 2.3GHz, 3M Cache
- Celeron® G1820TE, Dual-Core, 2.2GHz, 2M Cache

Turbo-boost disabled by default

2 x DDR3/DDR3L SO-DIMM Socket, support up to 8GB with un-buffered and non-ECC

Three Independent Display
- HDMI + DVI-I + DVI-D

Dual Independent Display
- HDMI + DVI-I
- HDMI + DVI-D
- DVI-I + DVI-D

Front I/O Interface Status LEDs

3 x LAN Active LEDs/1 x CFast access LEDs

3 x GPO Status/COM1/2 TX/RX LEDs

1 x HDD Access LEDs

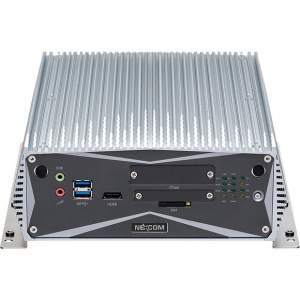

Front I/O Interface

1 x ATX power on/off switch

1 x HDMI

2 x USB3.0 Ports (900mA per each)

1 x Line-out and 1 x Mic-in

2 x Antenna Holes

1 x External CFast socket

1 x SIM Cardholder

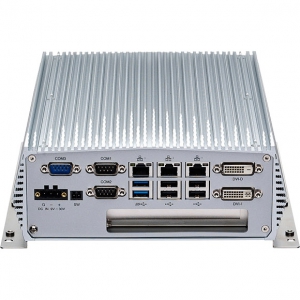

Rear I/O Interface

3 x DB9 for COM1 & COM2 & COM3
- COM1: RS232/422/485 auto flow control
- COM2: RS232/422/485 auto flow control
- COM3: RS2322 x USB 3.0 Ports (900mA per each)

4 x USB 2.0 Ports (500mA per each)

1 x DVI-D port

1 x DVI-I port

3 x Intel® I210IT GbE LAN Ports; Support WoL, Teaming and PXE

1 x 2-pin Remote Power on/off switch

+9V to 30 V DC input

Storage Device

1 x CFast (SATA 3.0)

1 x 2.5" HDD (SATA 3.0)

1 x mSATA (internal Mini-PCIe socket)

Expansion Slot

One PCIex4 Expansion Slot
- Add-on card length: 169mm max.
- Power Consumption: 10W/slot max.

2 x internal Mini-PCIe socket support optional Wi-Fi/3.5G/mSATA/Fieldbus

Power Requirement

AT/ATX Power Mode (default: ATX power mode)

Power input: +9 to +30V DC

Power adapter: Optional AC to DC power adapter (24V DC, 120W)

215 mm(W) x 272mm (D) x 93mm (H) without wall mount bracket (8.5" x 10.7" x 3.7")

Aluminum and Metal Chassis with fanless design

Operating Temperature:
Ambient with airflow: -5°C to 55°C (According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)

Storage Temperature: -20°C to 85°C

Relative Humidity: 10% to 93% (Non-Condensing)

Shock Protection:
- HDD: 20G, half sine, 11ms, IEC60068-27
- CFast: 50G, half sine, 11ms, IEC60068-27

Vibration Protection with HDD Condition:
- Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64
- Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6

Certifications

CE Approval

FCC Class B

OS Support Lists

Windows 7 32bits and 64bits

Windows 8.1 32 bits and 64 bits

Weight Information

Gross Weight: 5.9kg

Net Weight: 4.5kg
