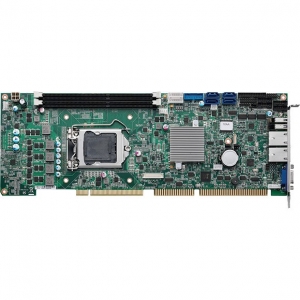

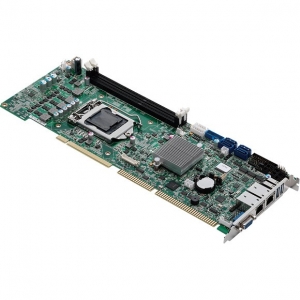

PEAK 779VL2

PICMG1.0 Full-size SBC tích hợp Intel® B75 hỗ trợ bộ vi xử lý Intel® Gen.3rd Core™ i7/i5/i3

Giá: Liên hệ

Tính năng chính:

Scalable platform 3rd generation
Intel® Core™ i7/i5/i3 processors + non-ECC Intel® B75 PCH chipset support PICMG1.0 specification
Support Dual channel DDR3 with Non-ECC DIMMs 1333/1600MHz, up to 16GB
Support PCI/ISA, 4 x USB3.0/4 x USB2.0, 1 x SATA3.0/3 x SATA2.0 and 2 x GbE
Display support for VGA, DVI, HDMI
Dimension 338.58mm (L) x 122mm (W) (8 layers single side)

Báo giá sản phẩm

Datasheet (PDF)

The PEAK 779VL2 is a PICMG1.0 Full-size single computing board featuring Intel® B75 PCH chipset supports 3rd generation Intel® Core™ processor with Dual DDR3 DIMM socket up to 16GB DDR3 1333/1600MHz SDRAM with Non-ECC support and integrated HD Graphic controller. The Intel® B75 PCH manages SATA2.0/3.0 Ports. Furthermore, it supports others versatile I/O ports such as legacy PCI & ISA interface, two series ports, KB/Mouse interface, optional TPM function, eight USB ports, and two Intel PCI express Gigabit LAN port. It offers a great solution for advance industrial application that requires superb display and processing performance.

CPU Support	Support Intel® LGA1155, 3rd generation Intel® Core™ processor Intel® Core i7-3770 (4C/8M cache/3.4GHz/Max. TDP 77W) Intel® Core i5-3550S (4C/6M cache/3.0GHz/Max. TDP 65W) Intel® Core i3-3220 (2C/3M cache/2.4GHz/Max. TDP 55W) Intel® Pentium® G2120 (2C/3M cache/1.6GHz/Max. TDP 65W)
Main Memory	Dual DDR3/DIMMs, support 1333/1600MHz non-ECC system memory up to 16GB
Platform Control Hub	Intel® B75 PCH chipset
BIOS	AMI System BIOS Plug and play support Advanced power management and advanced configuration & power
Display	Intel® HD graphics with DX11 support up to two independent displays Supports VGA and DVI/HDMI interfaces
Audio	HDA interface with PIN header
On-board LAN	Intel® 82579LM Gigabit EthernetIntel® 82574l Gigabit Ethernet Support PXE boot from LAN, wake on LAN function
I/O Interface	USB: 3.0, 2 x ports through I/O bracket/2 x port through JST Connector USB2.0: 4 x ports through 2.5mm JST connectors Four SATA Port: one SATA 3.0/three SATA 2.0 Four PCI interface/three ISA interface (through ITE8888) Two RJ45 Gigabit Ethernet LAN ports Four series ports (COM2 Supports RS232/422/485, RI pin can supply 5V/12V voltage) Parallel port through box header Keyboard/mouse interfaceHDA interface through pin header for audio function (optional)
Power Requirements	+12V, +5V, +3.3V, +5VSB, +3.3V RTC power Power source from backplane through golden finger and AUX +12V Support ATX/AT Power supplies
Dimensions	338.58mm (L) x 122mm (W)
Environment	Board level operating temperatures: -15°C to 60°C Storage temperatures: -20°C to 80°C Relative humidity: 10% to 90% (operating, non-condensing) 5% to 95% (non-operating, non-condensing)
Certifications	Meet CE FCC Class A

PEAK 779VL2 (P/N: 10P0779VL00X0)
PICMG 1.0 full-Size SBC, Intel^® B75 chipset, 3rd generation Intel^® Core™ i7/i5/i3 processor with DDR3 DIMM 1333/1600MHz up to 16G, VGA integrated, 2 x GbE, 4 x SATA

Driver
Date	Description	Version	OS	Download
2015-01-14	.NET Framework		Windows
2015-01-14	Audio		Windows
2015-01-14	Chipset		Windows
2015-01-14	Intel(R) USB 3.0 eXtensible Host Controller Driver PV (HF1)		Windows
2015-01-14	LAN		Windows
2015-01-14	VGA		Windows

Manual
Date	Description	Version	OS	Download
2014-06-26	Quick Guide		Windows
2020-04-29	User Manual		Windows
