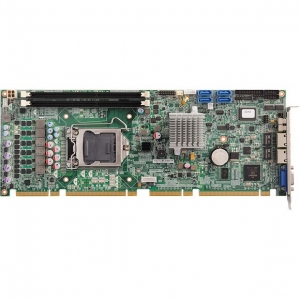

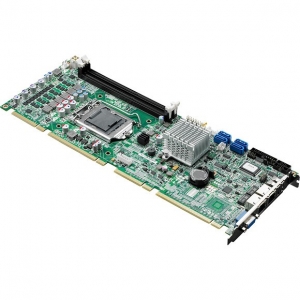

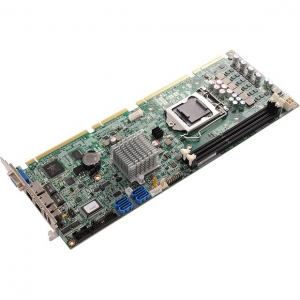

PEAK 877VL2

Intel® Core™ i7/ i5/ i3/ Pentium® LGA1156, 2 khe cắm PCI Express Gigabit LAN/ 6 x SATA/ 8 x USB 2.0

Giá: Liên hệ

Tính năng chính:

Onboard XGI Z11 graphic for Intel® Core™ i7 processors
Support Intel® LGA1156, Core™ i7/ i5/ i3/ Pentium®
1 x 82574 PCI Express Gigabit Ethernet
1 x 82578DM Gigabit Ethernet 6 x SATA, 8 x USB2.0, 2 x COM, 1 x Parallel
Support Non-ECC Dual Channel DIMM-DDR3 1066/1333 MHz up to 8GB
Intel® AMT 6.0

Báo giá sản phẩm

Datasheet (PDF)

PEAK 877VL2 is a PICMG 1.3 full-size Single Board Computer (SBC), which supports Intel® Core™ i7/ i5/ i3/ Pentium® processors with Hyper-Threading technology. The Intel® Core™ i7/ i5/ i3/ Pentium® supports dual channel non-ECC DDR3 1066/ 1333 MHz memory in two DIMM slots and an XGI Z11 integrated graphics controller. The Q57 Express Chipset PCH manages SATA HDD ports, parallel port.

Furthermore, it supports versatile I/O ports such as two serial ports, eight USB ports, and two PCI Express Gigabit LAN ports. The PEAK 877VL2, with Intel® Core™ i7/ i5/ i3/ Pentium® and PCI Express LAN, offers a great solution for advanced industrial application that requires processing performance.

CPU Support	Intel® LGA1156, Core™ i7/ i5/ i3/ Pentium®Intel® Quad Core™ i5/ i7
Main Memory	2 x 240-pin DIMM, for up to 8GB dual-channel Non-ECC DDR3 1066/1333 SDRAM
BIOS	AMI BIOS Plug and play support Advanced power management
On-board LAN	1 x Intel® 82578DM PHY for AMT 6.0 1 x Intel® 82574L PCI Express Gigabit Ethernet Support boot from LAN (PXE) 2 x RJ45 with LED
Display	Integrated graphic engine by XGI Volari Z11 GPU with DDR2 SDRAM through PCIe 1 x Interface Analog VGA Interface: 230MHz pixel clock support CRT display up to 1600x1200@70Hz 16M colors
I/O Interfaces	USB 2.0: 8 ports (2 onboard, 4 to backplane), 2 ports through I/O Bracket Serial port: 2 port, with 2x5pin headers (COM 1 and COM 2)SATA HDD: 6 ports, Support RAID 0/1/5/10 and Intel® Matrix Storage Technology (Intel® MST) Parallel port: 1 x 26-pin connectorIrDA: 1 x 5-pin header GPIO: Supports 4 sets general-purpose I/O each with TTL level (5V) interface On-board buzzer x 1Power LED/ Power On/ Reset/ SMBUS: 2 x 8 pin header 1 x 4-pin fan connector (for CPU); 1 x 3-pin fan connectors (for System)IPMB interface through PICMG 1.3 Golden-finger I/O On SBC Bracket 1 x VGA DB-15 connector 2 x RJ45 Gigabit Ethernet LAN port 2 x USB 2.0 Ports
Watchdog Timer	1-minute increments from 1 to 255 minutes1-second increments from 1 to 255 seconds On-chip RTC with battery backup 1 x External Li-ion battery
System Monitor	6 Voltages (+3.3V, +5V, +12V, Vcore) memory, VTT3 Temperatures (For CPU and System)2 FAN speed monitors (1 for CPU and 2 for System FAN)
Dimensions	PICMG 1.3 SHB Dimension: 338.58mm (L) x 126.39mm (W) (13.3" x 4.9")
Power Input	Power source from backplane through golden finger and AUX +12V Support ATX/AT power supplies+12V/+5V/+3.3V/+5Vsb
Environment	Board level operating temperatures: 0°C to 60°C Storage temperature: -20°C to 85°C Relative humidity: 10% to 90%, (Non-condensing)
Certifications	CE approval FCC Class A

PEAK 877VL2 (P/N:10P0877VL00X0))
PICMG 1.3 Full-Size SHB, Intel^® LGA1156, Core™ i7/ i5/ i3/ Pentium^® with Max 8GB, DDR3 DIMM, VGA integrated, Intel^® 82574L PCI Express Gigabit Ethernet x 2, Serial ATA x 4

Driver
Date	Description	Version	OS	Download
2011-05-25	Chipset		Windows
2011-05-25	INF		Windows
2011-05-25	LAN		Windows
2011-05-25	ME		Windows
2011-05-25	TPM Infineon		Windows
2011-05-25	Z11		Windows
2011-05-25	Z11		Linux

Manual
Date	Description	Version	OS	Download
2011-11-07	User Manual		Windows
