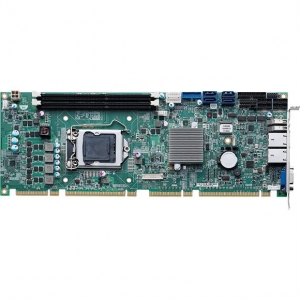

PEAK 886VL2

PICMG 1.3 Full-size Single Computing Board tích hợp Intel® Q77 Single Computing Board Intel® Gen.3rd Core™ i7/ i5/ i3 Processors

Giá: Liên hệ

Tính năng chính:

Scalable platform Intel® 3rd generation Core™ i7/ i5/ i3 processor, Ivy Bridge + Non-ECC
Intel® Q77 PCH chipset support PICMG 1.3 specification
Support Dual channel DDR3 with NON-ECC DIMMs 1333/1600MHz up to 16GB
Support PCIex16, 4PCIe x1, 4USB3.0/ 4USB2.0, 4SATA3.0/ 2SATA2.0 and GbE Display support for VGA, DVI, HDMI, DisplayPort
Dimension 338.58 x 126,39 mm2 (W x L) (8 Layers Single side)

Báo giá sản phẩm

Datasheet (PDF)

The PEAK 886VL2 is a PICMG1.3 Full-size single computing board featuring Intel® Q77 PCH chipset supports Intel® 3rd generation Intel® Core™ processor with Dual DDR3 DIMM socket up to 16GB DDR3 1333/ 1600MHz SDRAM with Non-ECC support and integrated HD Graphic controller. The Intel® Q77 PCH manages SATA2.0/3.0 Ports. Furthermore, it supports other versatile I/O ports such as legacy four series ports, KB/Mouse interface, optional TPM function, eight USB ports, four PCI Express x1 interface and two Intel® PCI express Gigabit LAN port. It offers a great solution for advance industrial application that requires superb display and processing performance.

CPU Support	Support Intel® LGA1155, 3rd generation Intel® Core™ processor Intel® Core™ i7- 3770 (4C/ 8M cache/ 3.4GHz/ Max. TDP 77W) Intel® Core™ i5- 3550S (4C/ 6M cache/ 3.0GHz/ Max. TDP 65W) Intel® Core™ i3- 3220 (2C/ 3M cache/ 2.4GHz/ Max. TDP 55W) Intel® Pentium® G2120 (2C/ 3M cache/ 1.6GHz/ Max. TDP 65W)
Main Memory	Dual DDR3/ DIMMs, support 1333/1600MHz Non-ECC system memory up to 16GB
Platform Control Hub	Intel® Q77 PCH chipset
BIOS	AMI System BIOSPlug and play support Advanced Power Management and Advanced Configuration & Power Interface support
Display	Intel® HD graphics with DX11 support up to two independent displays One PCI Express X 16 Lane down to PICMG1.3 Golden finger Supports VGA and DVI / HDMI / Display port interface
Audio	HDA interface with PIN Header
On-board LAN	Intel® 82579LM Gigabit Ethernet, support iAMT 8.0Intel® 82574l Gigabit Ethernet, Support PXE boot from LAN, wake on LAN function
I/O Interface	USB: 3.0 2 Ports through I/O bracket / USB 2.0: 4 ports through backplane / 2 Port through 2.5mm JST connectors Six SATA Port: Four SATA 3.0 / Two SATA 2.0. (Support RAID0 / 1/ 5/ 10 and Intel® Rapid Storage Technology AHCI)One PCI-EXPRESS X 16 / Four PEI-EXPRESS X 1Two RJ45 Gigabit Ethernet LAN ports.Four series ports (COM2 Supports RS232/422/485, RI pin can supply 5V/12V voltage)Parallel port through box header Keyboard / Mouse interfaceHDA Interface through pin header for Audio function.Onboard pin header for IRDATPM support(option)
Power Requirements	+12V, +5V, +3.3V, +5VSB, +3.3V RTC power Power source from backplane through golden finger and AUX +12VSupport ATX / AT Power supplies
Dimensions	338mm (W) x 126mm (L)
Environment	Board Level Operating temperatures: 0°C to 60°C Storage temperatures: -20°C to 80°C Relative humidity: 10% to 90% (operating, non-condensing) 5% to 95% (non-operating, non-condensing)
Certifications	Meet CE FCC Class A

PEAK 886VL2 (P/N:TBD)

Driver
Date	Description	Version	OS	Download
2014-01-17	Chipset		Windows
2014-01-17	Graphic		Windows
2014-01-17	Intel USB3.0 eXtensible Host Controller		Windows
2014-01-17	LAN		Windows
2014-01-17	ME		Windows

Manual
Date	Description	Version	OS	Download
2016-01-29	Quick Reference Guide		Windows
2016-01-29	User Manual		Windows
