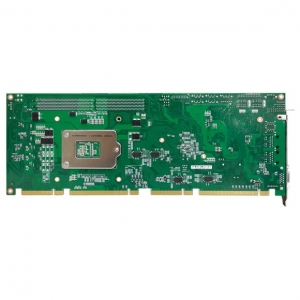

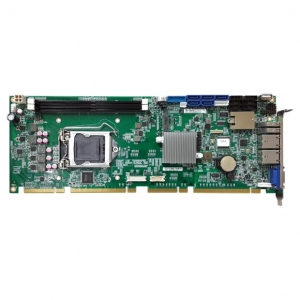

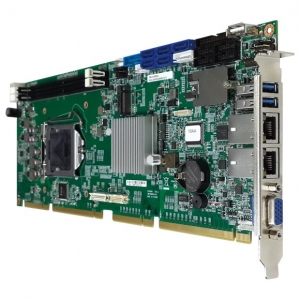

PEAK 888VL2

PICMG 1.3 Full-size SBC tích hợp Intel® Q170/H110 hỗ trợ bộ vi xử lý Gen.6th Intel® Core™ i7/i5/i3

Giá: Liên hệ

Tính năng chính:

Support 6th generation Intel® Core™ i7/i5/i3 processor
Support Intel® Q170/ H110 PCH chipset PICMG 1.3 specification
Support Dual channel DDR4 with Non-ECC DIMMs 1866/2133MHz up to 32GB
Support PCIe 3.0 SATA 3.0 W/RAID 0,1,5,10, M.2 NVMe
Support Display for VGA, DVI/HDMI, DP S
upport Intel® AMT 11 & TPM 1.2/ 2.0(optional)

Báo giá sản phẩm

Datasheet (PDF)

The PEAK 888 is a PICMG1.3 Full-size Single-Board Computing. It equipped with Intel® 6th generation Core™ i7/i5/i3 processors and Intel® Q170/ H110 chipset. It comes with Dual DDR4 DIMM socket up to 32GB DDR4 1866/2133MHz with Non-ECC support and integrated HD Graphic controller. The PEAK 888Q SKU with Intel® Q170 PCH providing high performance and rich expansion. The SATA3.0 ports with RAID 0, 1, 5, and 10 helps provide quick access to data files and data protection. Furthermore, the advanced storage capabilities with Intel® RST features PCIe Gen3 x4 on NGFF M.2 form factor (2280, 22110) to maximizes storage performance and it also features an integrated Intel® AMT 11 for easier maintenance.

The PEAK 888H SKU with Intel® H110 PCH provides high performance and cost-effective solution.

CPU Support	6th generation Intel® Core™ i7/i5/i3 processor (65W/ 35W) TDPs, Socket LGA1151
Main Memory	2 x DIMM, support Dual-channel DDR4 NON-ECC DIMM 1866/2133 MT/S (Maximum32GB)
Platform Control Hub	Intel® H110 Express Chipset PCH Intel® Q170 Express Chipset PCH
BIOS	AMI system BIOS16MBit SPI depended on AMT function Dual BIOS for Four PCIex1 and One PCIex4
Display	The Processor Graphics contains a refresh of the ninth generation graphicsIntel® HD Graphics 530 Support independent triple display. VGA: Resolution up to 19201200 pixels @60MHz DVI: Resolution up to 19201200 pixels @60MHz HDMI: Resolution up to 40962304 pixels @60MHz DP: Resolution up to 40962304 pixels @60MHz * Supporting 4K display required two DDR channels of same size
Audio	High definition audio interface (Compatible with NEXCOM audio daughterboard PN: 10E000HDA00X0 EBK-HAD)
On-board LAN	1 x Intel® WG1219LM GbE PHY (PEAK 888Q support Intel® AMT 11) 1 x Intel® I211 Gigabit Ethernet Controller RJ45 with LED connecter x 2 Support Boot LAN (PXE) Support Wake on LAN
I/O Interface	1 x PCI Express x16 and 1 PCI Express x4 to backplane4 x PCI to backplane PEAk 888VL2-Q - 5 x SATA 3.0 port (2 x SATA 3.0 to BP through BIOS setting) - 1 x M.2 2280/ 22110 M Key (NVMe Gen 3 PCIex4) - Support RAID 0/1/5/10 - SIO: ITE8786, COM 1,3,4 Support RS232, COM2 support RS232/422/485 can be selected RI/5V/12V through jumper PS2 KB/MS 1 JST connector - Parallel Port: 26-pin box header x 1 - 6 Ports USB2.0 and 4 ports USB3.0 2 ports USB2.0, 2 ports USB3.0 1 port USB2.0 Type A (PEAK 888Q only) 4 ports USB 2.0 through backplane 2 ports USB 3.0 through I/O bracket - 210 pin header to support TPM module - 2 x Smart FAN connector (for CPU, system) - On-board buzzer - Watchdog time out can be programmable by software 1 second to 255 seconds
Power Requirements	Power source backplane through golden finger and AUX +12V Support ATX/AT function by jumper setting BIOS default is (ATX MODE)
Dimensions	338.58mm x 126.39mm, 8 layers (single side)
Environment	Board level operating temperatures: -20°C to 60°C Storage temperatures: -20°C to 85°C Relative humidity: 0% to 90% (operating, non-condensing) 0% to 95% (non-operating, non-condensing)
Certifications	CE approval FCC Class A CB/CCC certification

PEAK 888VL2-Q (P/N: 10P00088801X0)
PICMG 1.3 Full-size SBC, Q170, Intel^® LGA1151, DDR4 DIMM, support triple display LAN x 2, USB 3.0 x 4, SATA 3.0 x 5, M.2 (support PCIe storage)

PEAK 888VL2-H (P/N: 10P00088800X0)
PICMG 1.3 Full-size SBC, H110, Intel^® LGA1151, DDR4 DIMM, support dual display LAN x 2, USB 3.0 x 4, SATA 3.0 x 4, M.2 (support SATA storage)

Driver
Date	Description	Version	OS	Download
2020-01-21	Chipset	32-bit	Windows
2020-01-21	Chipset	64-bit	Windows
2020-01-21	Graphic	32-bit	Windows
2020-01-21	Graphic	64-bit	Windows
2020-01-21	LAN	64-bit	Windows
2020-01-21	LAN	32-bit	Windows
2020-01-21	ME	32-bit	Windows
2020-01-21	ME	64-bit	Windows
2020-01-21	USB 3.0	64-bit	Windows
2020-01-21	USB 3.0	32-bit	Windows
